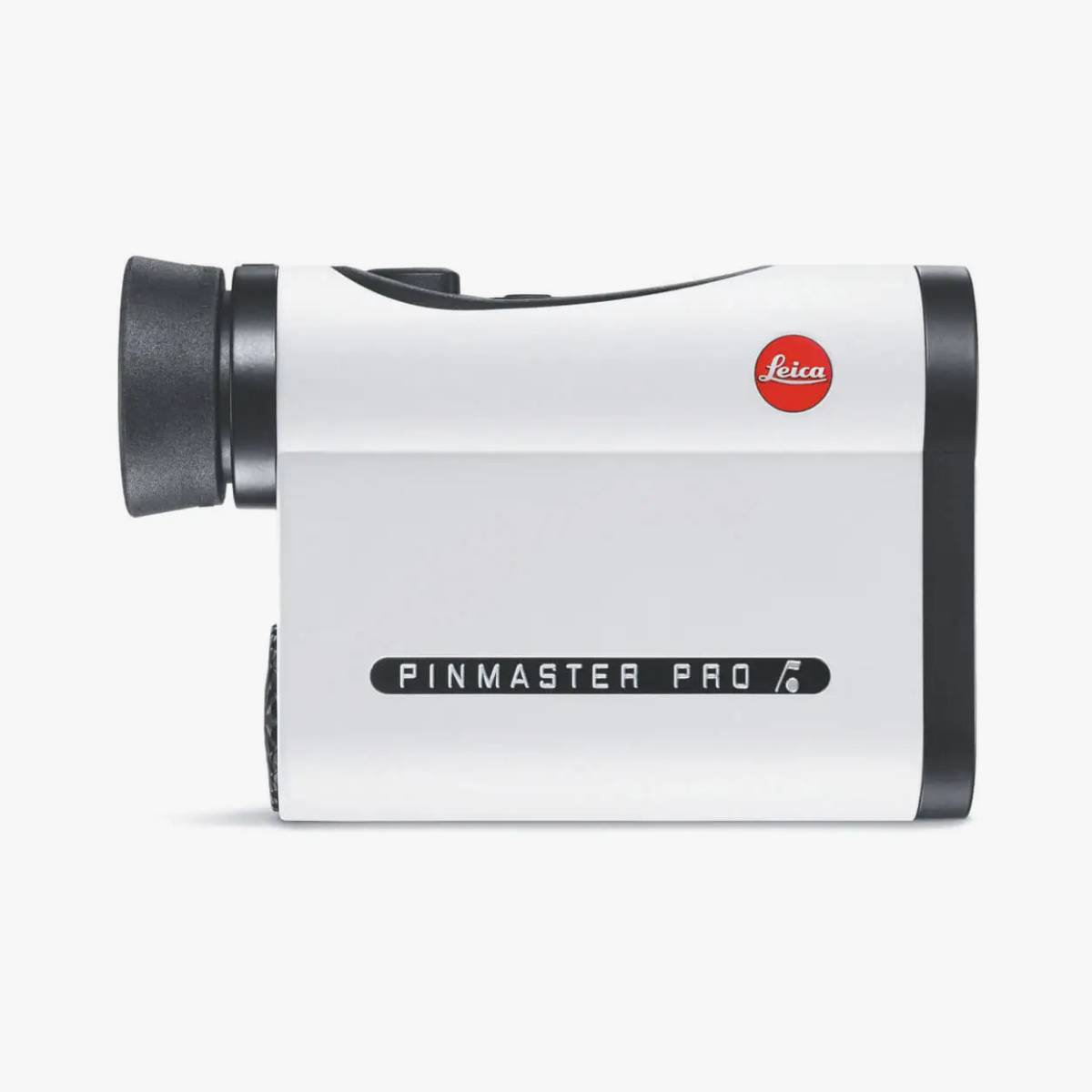

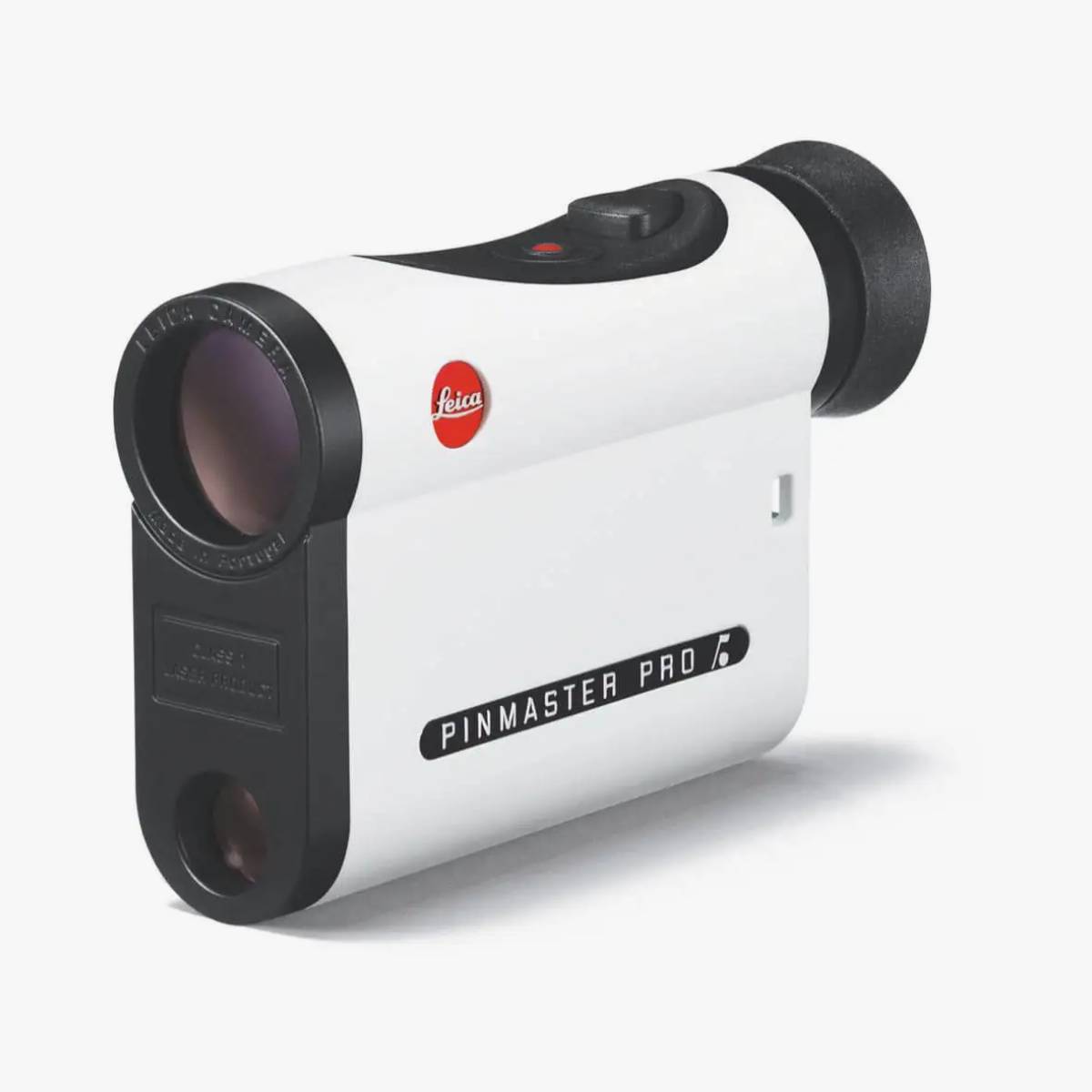

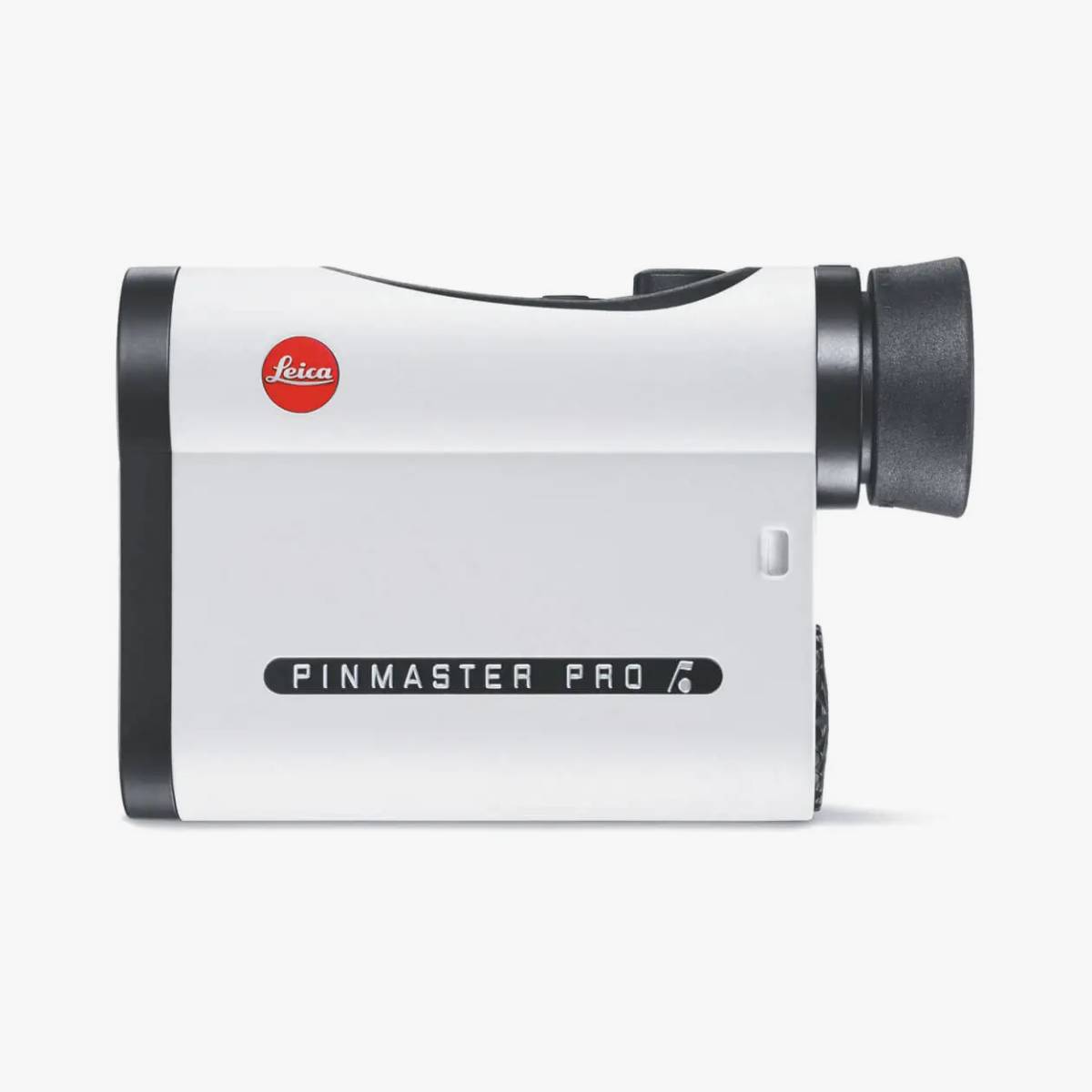

Leica Pinmaster II

The Leica Pinmaster II lets golfers measure precise distances to the pin, bunkers and traps and makes it much easier to choose the right club or iron. At the same time, its first-target logic enables reliable and accurate target sighting. This measuring method locks on to the first target sighted and thus prevents measuring errors returned from more distant objects. An additional scanning mode constantly scans the terrain and displays distance values in a rapid sequence. Its convenient meter/yard selection option enables international use without any need for distance conversion.

Outstanding vision in adverse weather conditions is guaranteed by water repellent AquaDura lens coating. Water and dirt just roll off the lens surfaces.

The device is operated by a single button. When the target is located, the first press of the button activates the rangefinder and then initiates the measuring process. The distance is measured with an invisible laser beam that presents no risks to the human eye. The distance measured, up to 750 meters, is shown on an LED display projected onto the optical sighting system. Its optimized display enables easy reading of the measured target distance, even in adverse conditions like bright sun and snow.

The Leica Pinmaster II features 7× magnification and a wide field of view of 115 meters at 1,000 meters. Its eyepiece allows diopter compensation adjustment and makes it an ideal choice for spectacle wearers.

The essentials:

  • Laser rangefinder
  • ACD TM – Angle Compensated Distance Technology
  • Range of up to 750 m
  • Exact measurement with the Leica first-target logic
  • Display can be changed from meters to yards
  • Carbon fiber reinforced and pressure water tight housing
  • LED display automatically adapts to the ambient light and weather conditions
Colour

White

Specifications

  • Magnification:

    7x

  • Front lens diameter:

    24 mm

  • Exit pupil:

    3.4 mm

  • Twilight factor:

    13

  • Field of view at 1,000 yds/m:

    347 ft / 115 m

  • Eye-relief:

    15 mm

  • Diopter compensation:

    ± 3.5 dpt

  • Range:

    10 to 750 m / 10 to 825 yds

  • Read-outs:

    LED display with four digits, easily legible in any light

  • Eyecup with twist and pull action:

    Turn down rubber eyecups

  • Eyepieces for eyeglass wearers:

    Yes

  • Prism System:

    Roof prism with phase correction coating P40

  • Watertightness:

    Watertight to a depth of 3.2 ft / 1 m

  • Housing:

    Carbon fibre-reinforced plastic material

  • Dimensions:

    4.5 x 2.25 x 1.25 in / 113 x 75 x 34 mm

  • Weight:

    Approx. 6.5 oz / 185 incl. battery

  • Meter/Yard selector:

    Yes

  • Laser:

    Eye-safe invisible laser according to EN and FDA class 1

  • Laser beam divergence:

    Approx. 0.5 x 2.5 mrad

  • Measuring time:

    Maximum approx. 0.3s

  • Measuring mode:

    Scanning mode

  • First target logic:

    The nearest distance value is displayed when several measured values are availble

  • Power supply:

    1 x 3 V/Lithium-type C2R

  • Battery life:

    Approx. 2,000 measurements at 20°C / 68°F

What's in the Box

  • Leica 7×24 Pinmaster II Pro Golf Laser Rangefinder
  • Cordura Carry Case
  • Carrying Cord
  • CR2 Battery
  • Limited 10-Year Manufacturer Warranty (Accidental Damage Passport Warranty)
  • Limited 30-Year Manufacturer Warranty
